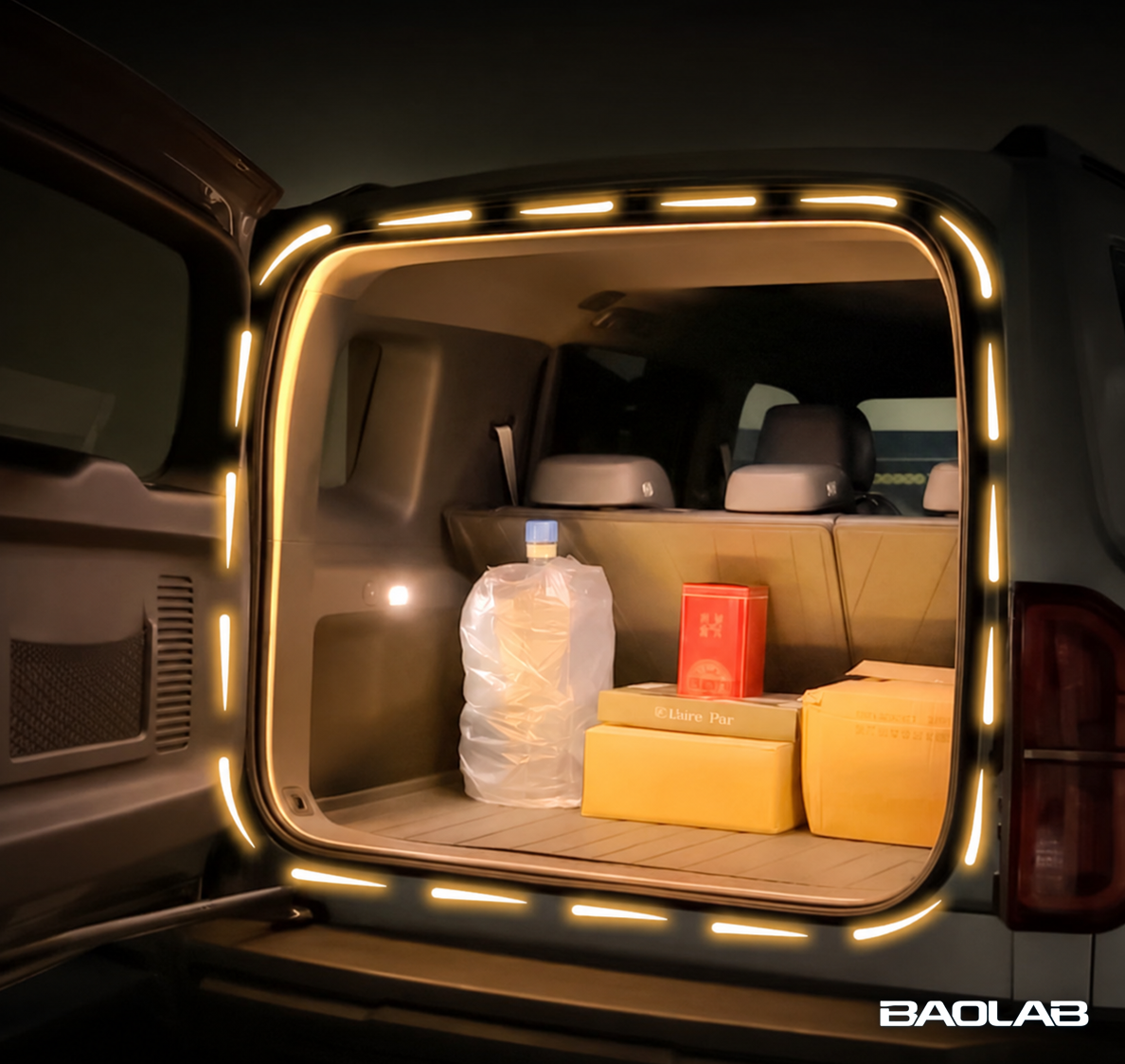

• Denza rear cargo opening with hidden perimeter boot light illuminated around the full tailgate opening.

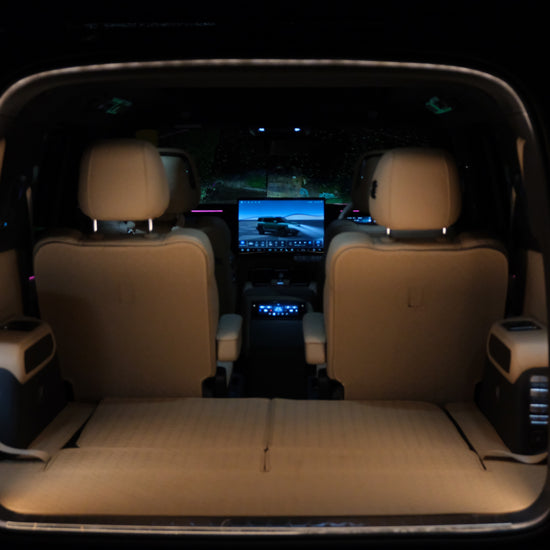

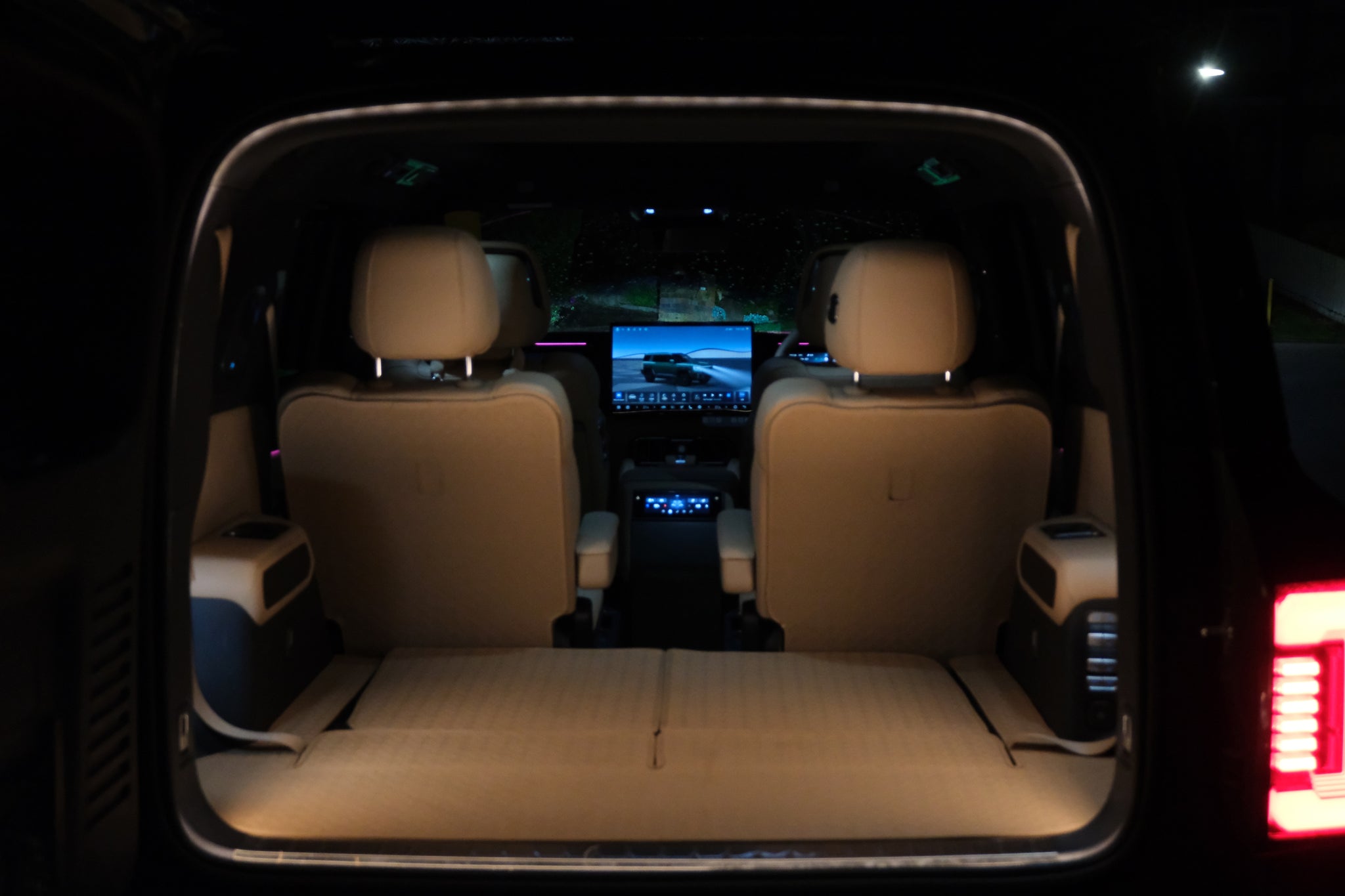

  • Video demonstration of the BAOLAB hidden perimeter boot light for Denza B8, showing the welcome animation and full cargo-area illumination at night.

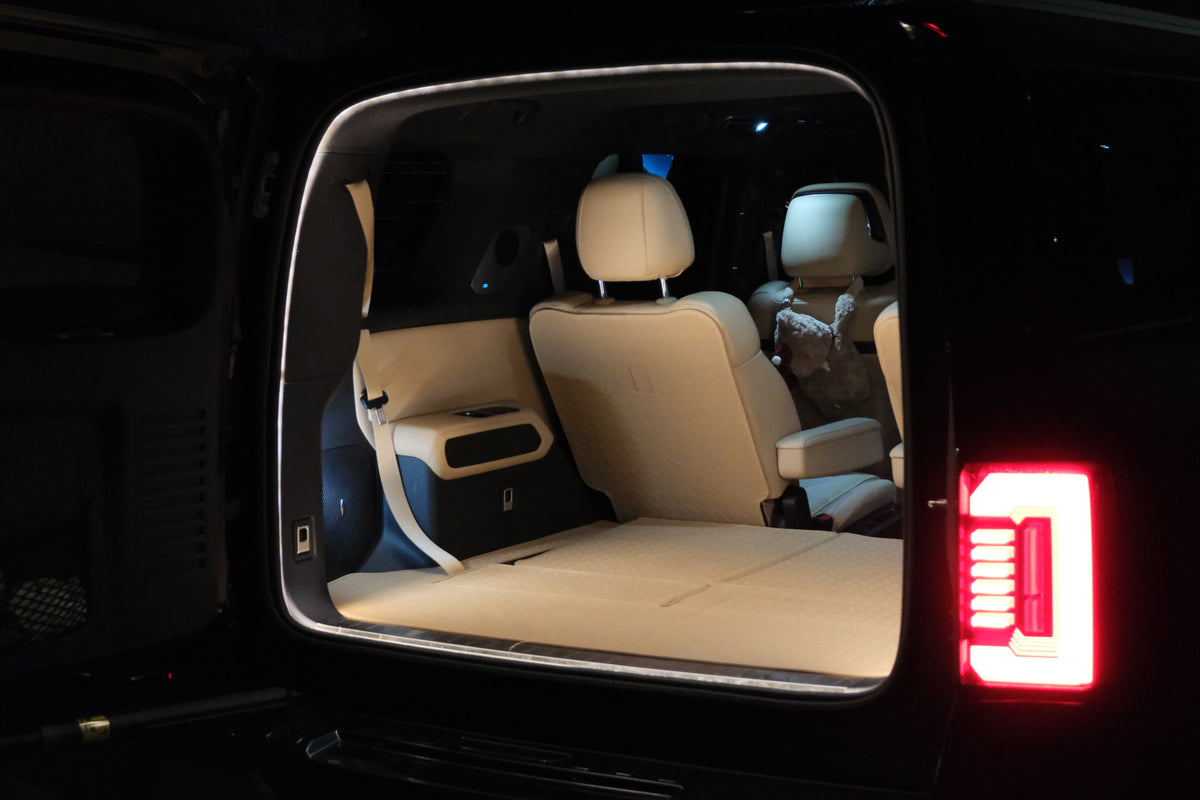

  • Angled rear view of the Denza B8 boot with BAOLAB hidden perimeter boot light installed, showing the illuminated cargo opening at night.

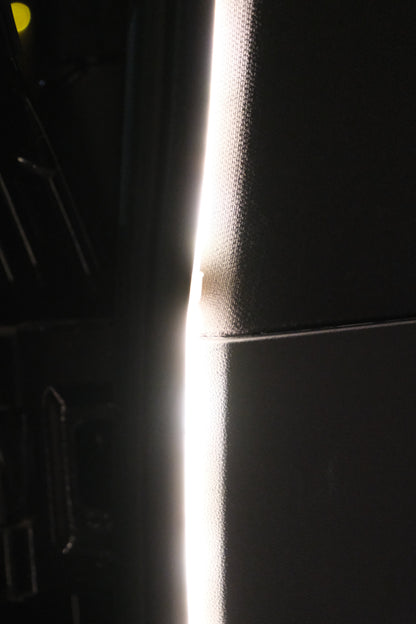

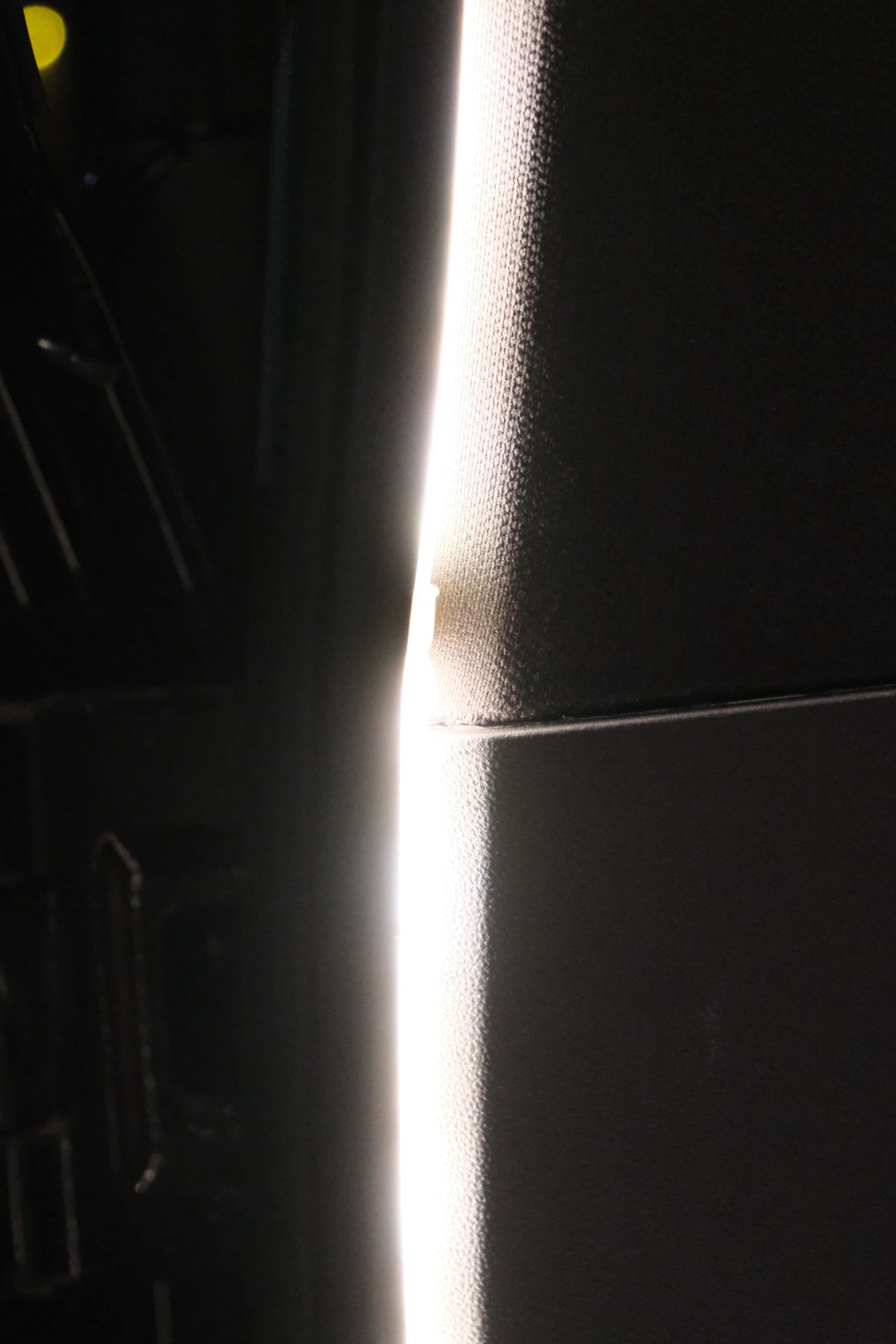

  • Close-up detail of the BAOLAB hidden perimeter boot light installed along the Denza B8 boot trim, showing the smooth continuous light output.

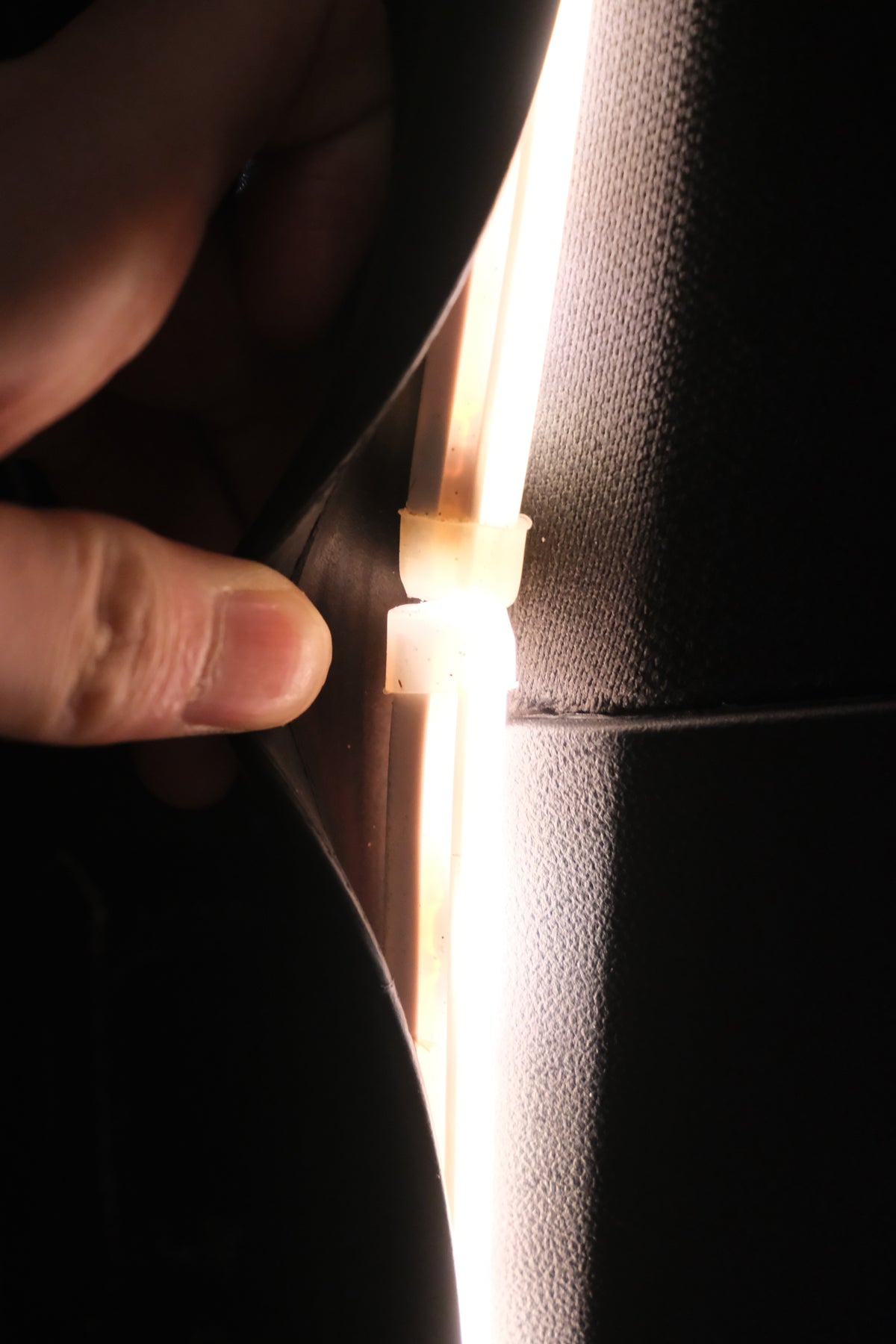

  • Close-up of the BAOLAB hidden perimeter boot light tucked behind the Denza B8 boot weather seal, showing the discreet hidden installation.

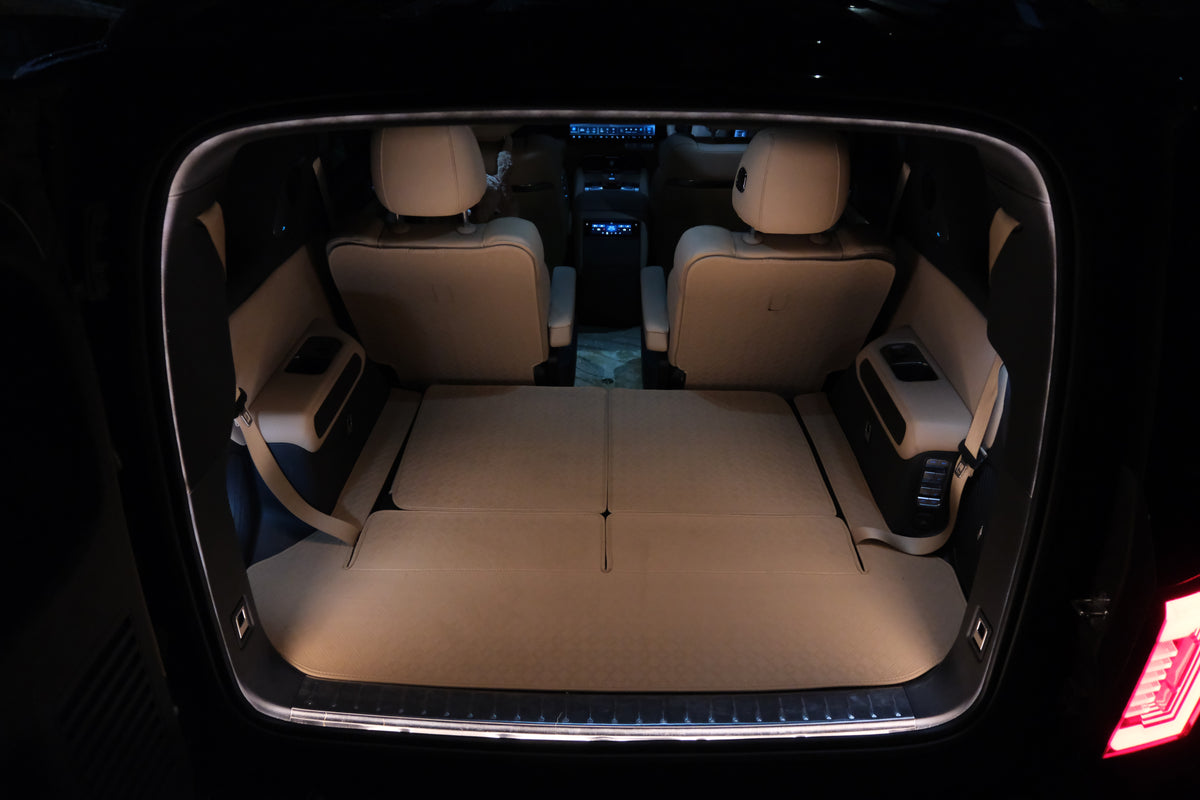

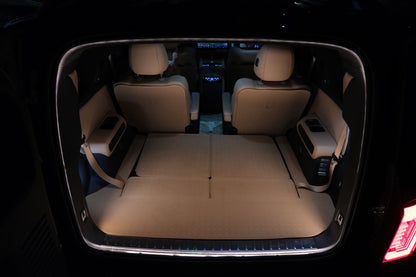

  • Rear cargo view of the Denza B8 with BAOLAB hidden perimeter boot light on, showing even illumination across the boot area at night.

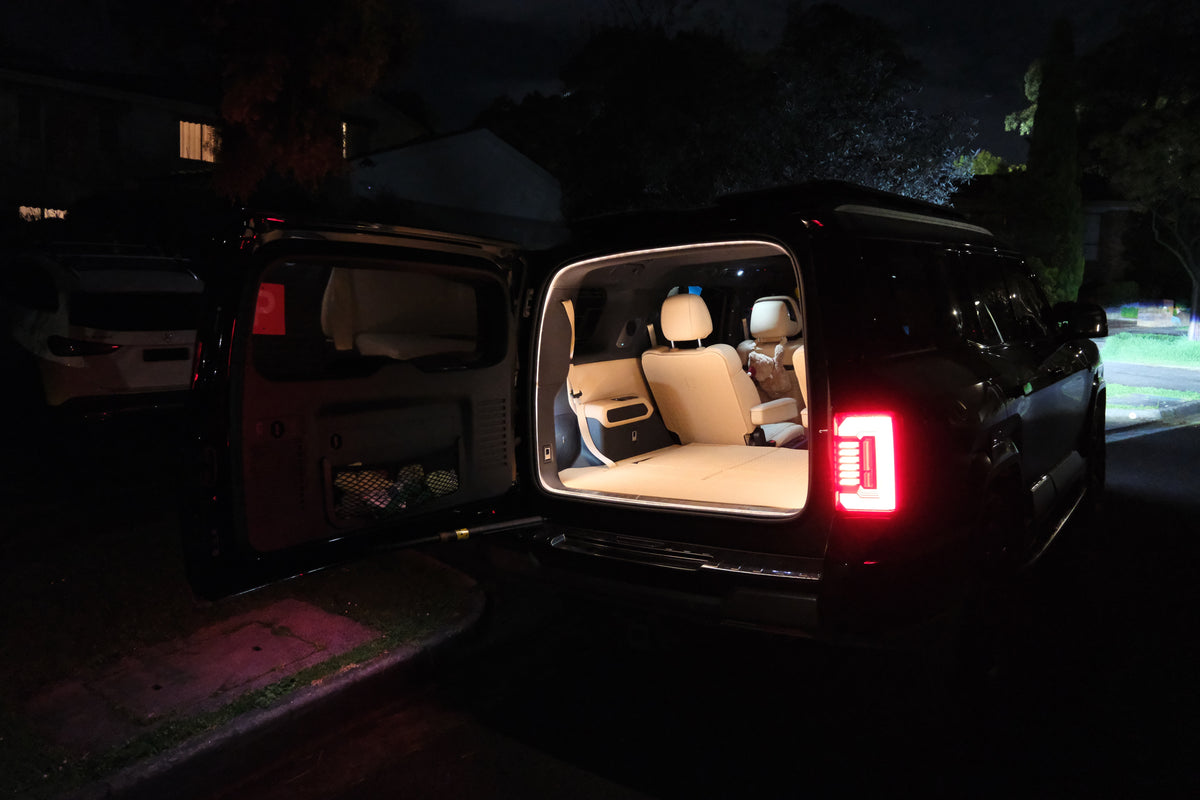

  • Night-time exterior view of a Denza B8 with the tailgate open and BAOLAB hidden perimeter boot light illuminating the rear cargo area.

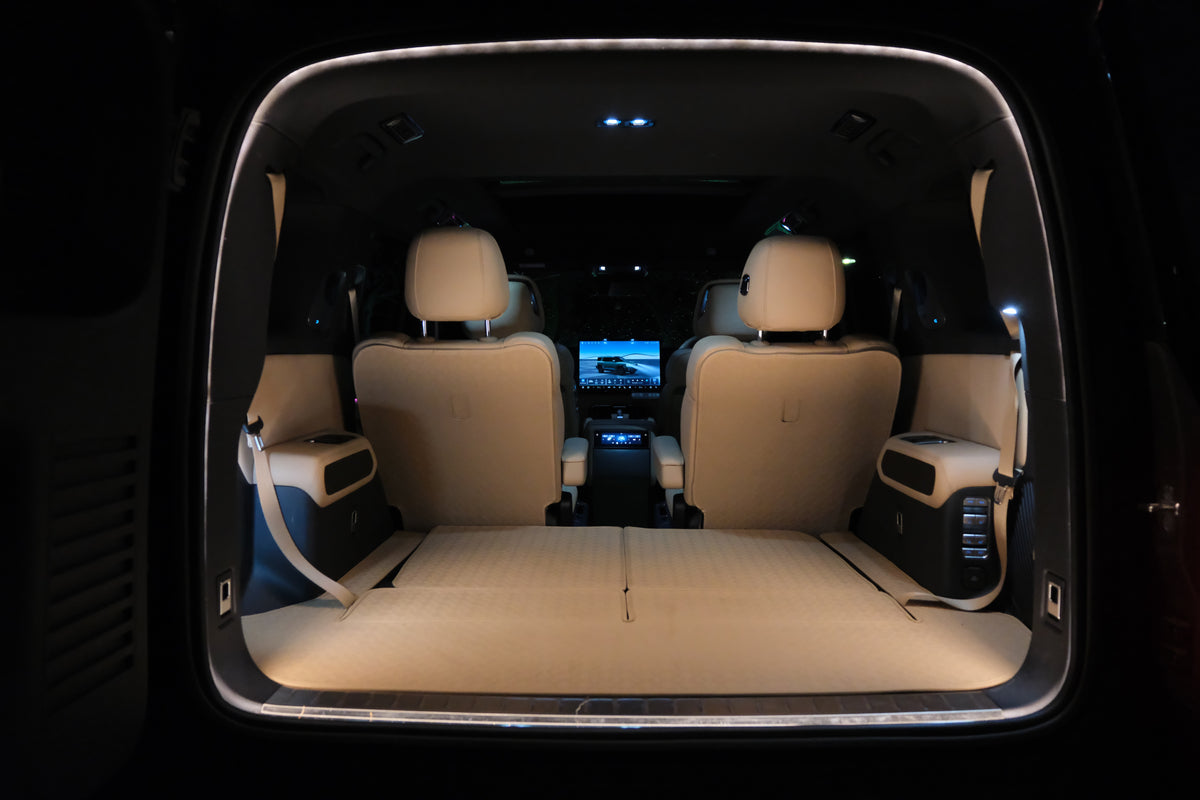

  • Denza B8 boot opening illuminated by BAOLAB hidden perimeter boot light, showing a continuous soft white glow around the cargo opening at night.
1 8

Denza Hidden Perimeter Boot Light

Denza Hidden Perimeter Boot Light

$89.00 AUD
$119.00 AUD $89.00 AUD
Sale Sold out
Shipping calculated at checkout.
Colour Temperature
View full details


Denza Hidden Perimeter Boot Light

Transform the dark factory boot area with a hidden perimeter lighting system designed for the Denza B5 and B8.


The LED strip installs discreetly alongside the boot weather seal, creating an even loop of light around the cargo area while keeping the light source itself hidden from normal view.

A plug-and-play Y-splitter harness connects directly to the vehicle's original boot-light circuit, allowing both the factory boot light and the new LED strip to operate together.

No cutting, splicing or soldering of the vehicle's factory wiring, and no coding required.


Features

  • Hidden perimeter illumination — creates an even glow around the boot while keeping the LED strip itself out of sight
  • Welcome animation — the light travels around the perimeter at approximately 50% brightness before smoothly increasing to full brightness
  • Plug-and-play installation — connects directly to the factory boot-light connector using the supplied Y-splitter
  • Factory light retained — the vehicle's original boot light remains fully functional
  • Automatic operation — turns on and off together with the factory boot light
  • Trim-to-fit silicone construction — smooth, flexible silicone lighting can be trimmed to the correct length for both B5 and B8
  • Silicone end cap included — seals and finishes the trimmed end after installation
  • Factory wiring remains untouched — no cutting, splicing or soldering of the vehicle's original wiring
  • Improved boot visibility — provides more even illumination across the cargo area than the factory light alone
  • OEM-style integration — designed to look and behave like a built-in vehicle feature
  • Hidden light source — once installed, you see the illumination rather than the LED strip itself


Compatibility

Vehicle Compatible
Denza B5 Yes
Denza B8 Yes

Additional Denza models may be supported in the future following fitment testing.


How It Works

The supplied Y-splitter connects between the vehicle's factory boot-light wiring and the original boot lamp.

One output retains the original boot light, while the second powers the new perimeter lighting.

The LED strip connector is routed behind the nearby trim using the supplied pull-through guide wire, then connected to the Y-splitter behind the factory boot-light opening.

Once installed, opening the boot activates both the original lamp and the perimeter lighting automatically. The perimeter light first performs its welcome animation before smoothly reaching full brightness.


Installation

Approximate installation time: 20–30 minutes

The electrical connection and cable routing are straightforward and typically take only a few minutes. The most time-consuming step is usually carefully removing the tightly clipped factory boot light and neatly installing the LED strip around the boot perimeter.

Installation overview

  1. Carefully pry out the factory boot light using the included trim-removal tool.
  2. Feed the included pull-through guide wire through the nearby trim/weather-seal gap.
  3. Route it around ~20 cm until it comes out through the factory boot-light opening.
  4. Use the included PVC tape to attach the LED strip connector to the guide wire.
  5. Pull it through so the LED connector comes out at the boot-light opening.
  6. Connect LED strip to one Y-splitter output.
  7. Connect original boot light to the other Y-splitter output.
  8. Connect the car's original boot-light plug to the Y-splitter input.
  9. Test everything.
  10. Tuck splitter/cables away and reinstall factory boot light.
  11. Tuck the silicone LED strip around the boot perimeter beside the weather seal.
  12. Trim the excess lighting to the required length
  13. Fit the supplied silicone end cap securely over the trimmed end.
  14. Check everything sits neatly and the weather seal is still positioned normally.

Important: The factory boot-light clips can be very tight. Take your time during removal and avoid excessive force to prevent damaging the lamp housing or surrounding trim.

A digital step-by-step installation guide will be available on the BAOLAB website.


What's Included

  • 1x Trim-to-fit silicone perimeter light
  • 1x Plug-and-play Y-splitter harness
  • 1x Pull-through guide wire
  • 1x PVC installation tape
  • 1x Trim-removal / pry tool
  • 1x Silicone end cap
  • Digital installation guide


No permanent modification to the vehicle's factory wiring is required. A digital step-by-step installation guide is available on the BAOLAB website.
